Every time you press the brake pedal, a complicated system kicks into action to bring your vehicle to a safe stop. At the center of this system is the brake master cylinder, a part that’s as crucial as it is often ignored. This hydraulic unit changes your foot pressure into stopping power and gives steady control in any driving condition. Without it, brake systems in cars today wouldn’t have the dependability drivers rely on every day. Let’s look at how this important part works, why it matters and how to keep it working well.
Brake Master Cylinder Functionality
What is a Brake Master Cylinder?

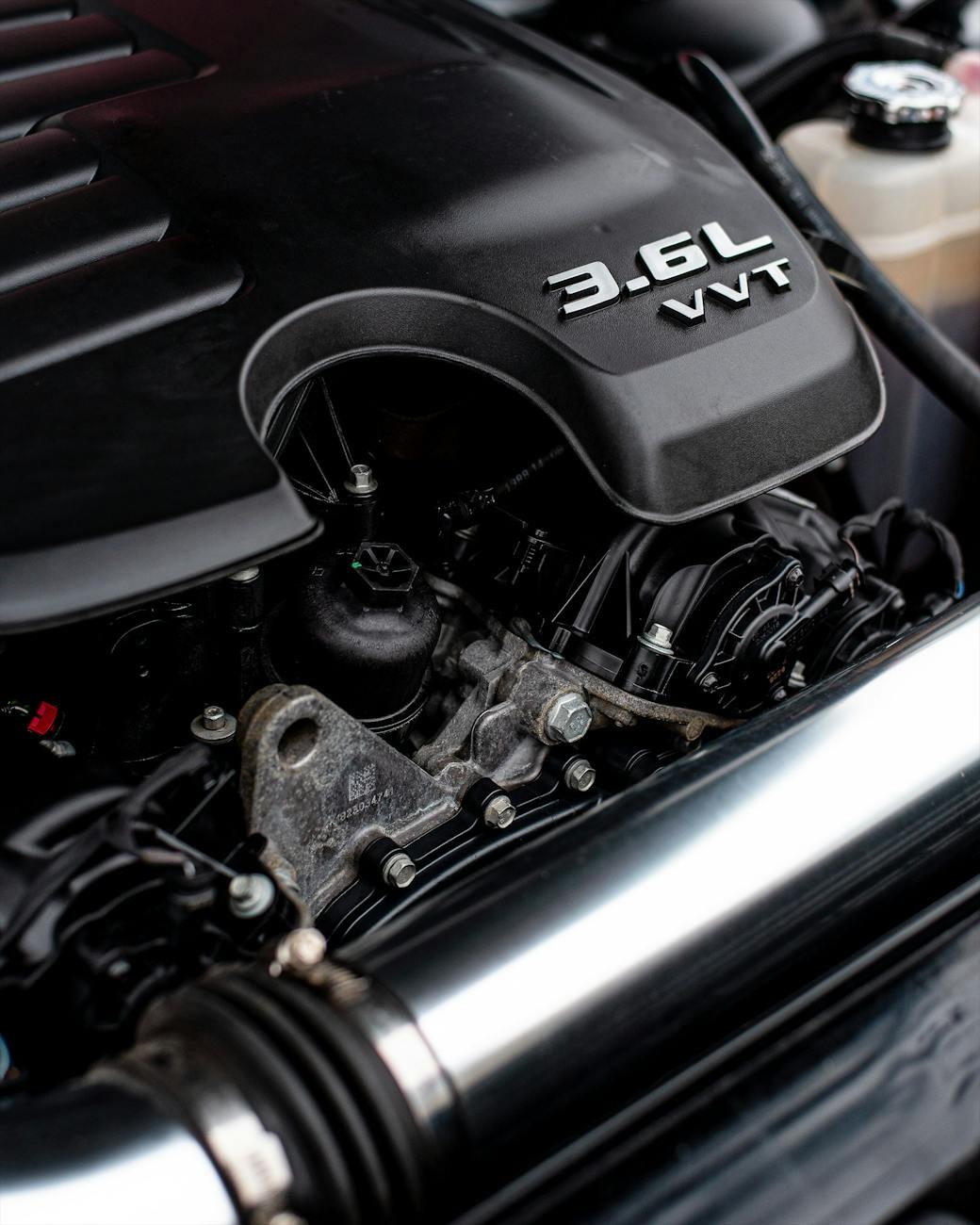

The brake master cylinder is the main part of your vehicle’s hydraulic braking system. It sits under the hood near the brake booster and changes the force from the pedal into hydraulic pressure. This pressure is then sent to the brakes at each wheel. Modern vehicles usually use tandem master cylinders that split the system into 2 separate circuits for backup.
How it Functions in the Braking System

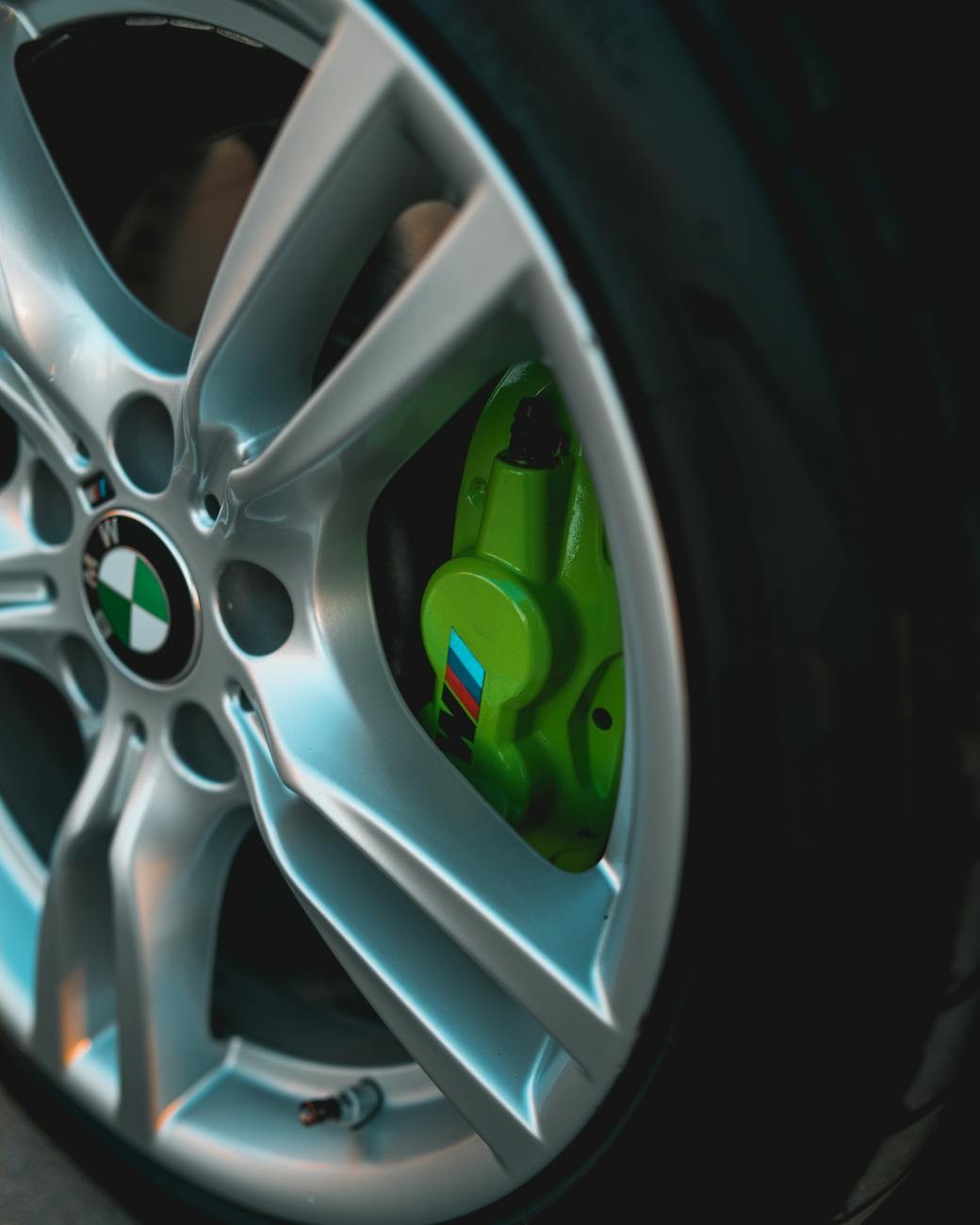

When you push the brake pedal, a pushrod moves pistons inside the master cylinder. These pistons squeeze brake fluid kept in a connected reservoir to make hydraulic pressure. The pressurized fluid flows through brake lines to activate calipers or wheel cylinders that press brake pads against rotors or drums. This process takes place in milliseconds and gives drivers the quick response they need. This design ensures optimum braking while you drive safely.
Central Role of the Master Cylinder
The brake master cylinder is often known as the heart of the braking system and it’s for a clear reason. Just like the heart pumps blood to keep us alive the master cylinder pumps brake fluid to keep stopping power strong. It makes sure pressure is spread evenly across all wheels preventing skidding or uneven wear. Dual-circuit designs add extra safety if one circuit fails from a leak the other still gives some braking ability.
“The master cylinder is the unsung hero of vehicle safety,” says automotive engineer Laura Simmons. “Its accuracy and backup systems are what keep drivers in control during emergencies.”
Design and Efficiency
Tandem Master Cylinder for Better Braking Efficiency and Safety
Most modern cars use tandem master cylinders which hold 2 separate pistons and fluid chambers. This design splits the brake system into front/rear or diagonal circuits. If there’s a leak in one circuit, say a broken rear brake line, the other circuit stays intact. This backup setup not only boosts safety but also keeps pressure steady during heavy loads or sudden stops. Tandem designs also work well with anti-lock braking systems (ABS) ensuring fast adjustments in slippery conditions.
Key Components of a Brake Master Cylinder
Roles of Each Component
The brake master cylinder depends on several parts working together.
- Primary and Secondary Pistons produce hydraulic pressure for 2 circuits.
- Pushrod moves pedal force to the pistons.

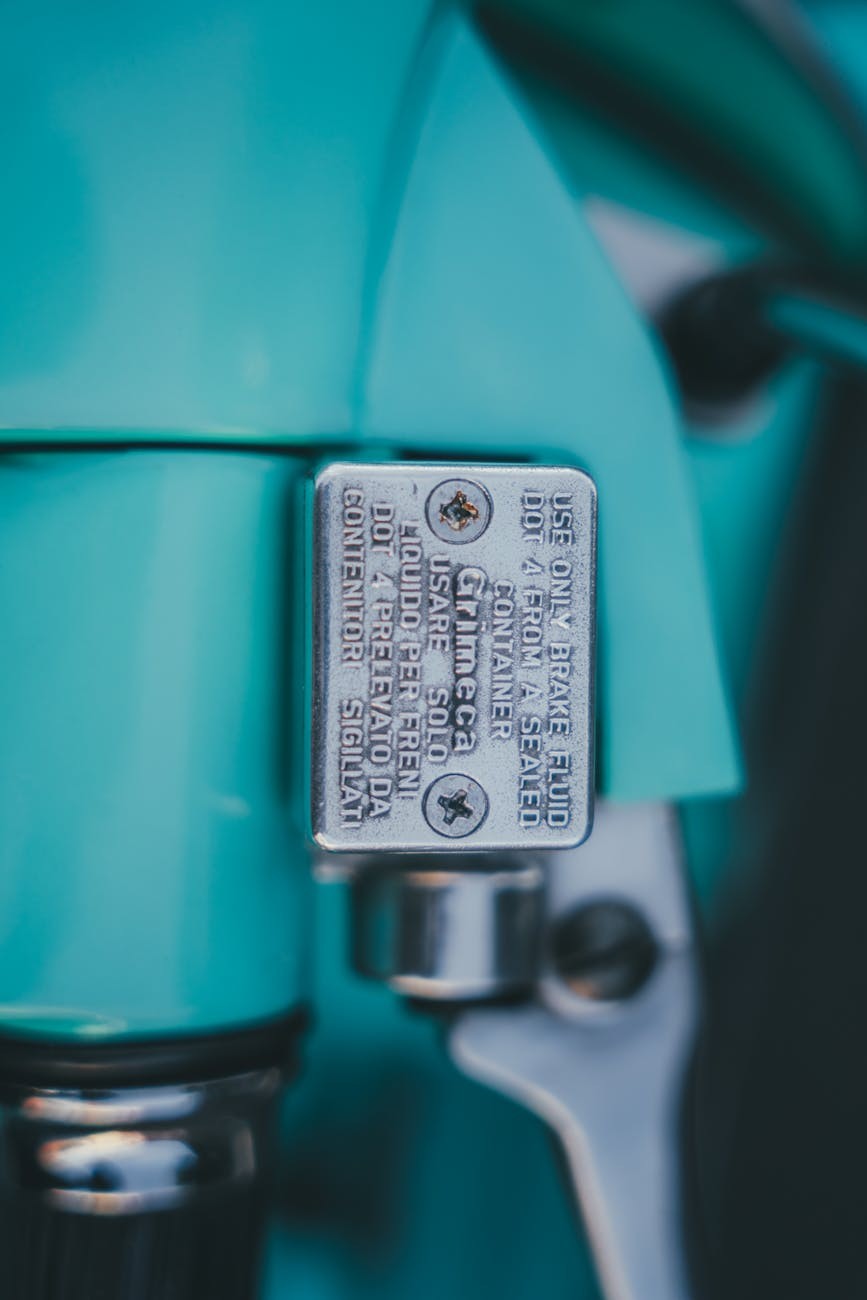

- Reservoir holds brake fluid and stops air from getting into the system.
- Proportioning Valve evens pressure between front and rear brakes to stop lockup.
- Return Spring resets the pistons after braking.
Every part plays an important role in keeping things running well. For instance a faulty proportioning valve might cause rear wheels to lock too early while a worn return spring could lead to a sluggish pedal.
Identifying Issues and Consequences
Signs of a Failing Brake Master Cylinder
Watch for these warning signs:
- A soft or sinking brake pedal
- Brake fluid leaking near the firewall
- Dirty fluid (a dark or murky look)
- Dashboard warning lights coming on
These issues show that your brake system might be in trouble and need a mechanic’s check soon. It means that something isn’t right with your braking setup and you might not get full response when needed. Addressing these signs quickly can help keep you safe on the road.
Potential Consequences of Failure
Ignoring these hints can lead to longer stopping distances, uneven braking or even complete brake failure. A damaged master cylinder may let air into the system, causing dangerous delays in how fast your brakes respond. This situation puts you at risk and might lead to unsafe driving conditions if not fixed soon using professional help.
Factors Influencing Pedal Effort and Travel
Master Cylinder’s Bore Size
The size of the master cylinder’s bore has a direct impact on pedal feel and overall braking performance. A larger bore demands more pedal force but cuts down travel distance, which works best for vehicles focused on high performance. Smaller bores let you press the pedal easily but lead to increased travel, fitting everyday driving. Choosing the right bore size creates a balance between ease and responsiveness. This detail plays a key role in linking the brake pedal to the brakes so you get reliable and safe stopping performance.
Power-Assisted Brakes vs. Manual Systems
Connection Differences to the Master Cylinder
Manual braking systems depend only on the driver’s force to trigger the master cylinder. Power-assisted systems common in modern cars use a brake booster (usually powered by vacuum) to boost pedal force. The booster sits between the pedal and master cylinder, lowering driver effort while keeping precise control.
Maintenance Tips for Optimal Performance
Ensuring Lifespan of the Brake Master Cylinder
- Check your brake fluid levels every month and top them off as needed to keep your braking system working properly.
- Change the fluid every 2 years to stop moisture from building up inside the system and causing problems.
- Look for leaks or rust around the reservoir and address any issues as soon as you see them.
- Make sure to use good-quality fluid suggested by your vehicle maker to keep everything running smoothly.
- Book yearly brake checks to spot any wear early and help avoid more serious issues down the line.
Conclusion
The brake master cylinder is key to car safety as it turns pedal presses into steady stops. Regular upkeep and quick attention to issues like leaks or soft pedals can help avoid expensive repairs and accidents. By knowing its function and staying proactive, you’re making sure your brakes work well when it counts most. Safe driving starts with a well-kept braking system so never underestimate the value of this vital part.
